What is rebar detailing?
Rebar detailing turns the engineer’s structural design into the information needed to cut, bend and place reinforcing steel. It produces placing drawings that show where every bar goes, and bar bending schedules that list each bar’s mark, size, shape, length, quantity and weight. Modern detailing is often done in a 3D model, which makes congested areas and clashes easier to spot before fabrication.
Placing and Shop Drawings
Plans, sections and elevations showing bar marks, sizes, spacing, laps, hooks, cover and supports for every concrete element.
- Slabs, beams and columns
- Walls, cores and stairs
- Footings, mats and piles
- Lap and splice locations
Bar Bending Schedules
Bar lists with marks, shape codes, dimensions, cut lengths, quantities and weights, grouped by pour, element or delivery release.
- Shape codes and dimensions
- Cut lengths and weights
- Release and pour grouping
- Fabricator-ready formats

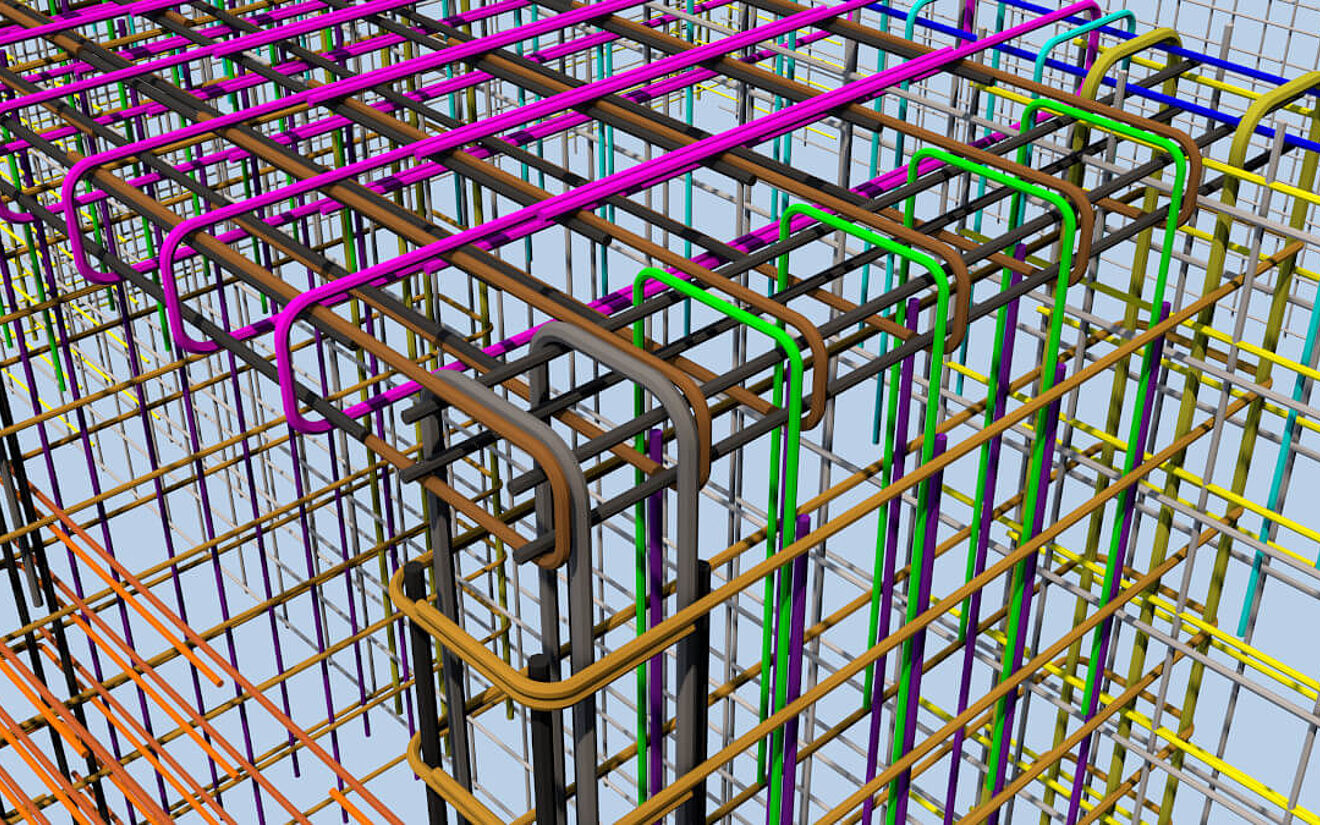

3D Rebar Modeling
Reinforcement modeled in Tekla or Revit to check congestion at joints, embeds and anchor bolts before bars are bent.
- Congestion and cover checks
- Clashes with embeds and MEP
- Model-based schedules
- IFC and model sharing
Revisions and As-Builts
Design revisions, RFI responses and field changes incorporated, with as-built rebar records issued at the end of the job.
- Revision tracking by release
- RFI logs and responses
- Field change updates
- As-built documentation
Standards and workflow
Detailed to Your Standard and Your Shop
We detail to the standard your project specifies, such as ACI 315 and CRSI practice in the US or BS 8666 shape codes in the UK, and to your own bar mark and schedule formats.
Your bar marks and formats
Bar marking, schedule layout and title blocks set up to match your fabrication shop.
Released by pour
Drawings and schedules issued in releases that follow your pour sequence.
RFIs raised early
Missing dimensions, unclear laps or conflicts flagged before detailing stalls.
Checked before issue
A second detailer checks marks, lengths, laps, cover and weights against the drawings.
How we work with you
Per Project, Hourly or a Dedicated Detailer
Every job starts with a fixed quote within 24 working hours, depending on structure size, complexity and drawing quality.
Fixed price per package
One agreed fee for a building, structure or defined set of pours.
Hourly detailing support
For revisions, change orders and overflow during busy periods.
Dedicated rebar detailer
A full-time detailer in your standards (VCC, BOT or BOM).
Where detailing goes wrong
What We Check Before Issue
Most site and shop problems come from a handful of detailing errors. Every release is checked for them.
- Lap lengths and splice locations against the design
- Cover, bar clearances and congestion at joints
- Bar marks matching between drawings and schedules
- Total weights reconciled for each release
