Point Cloud Surveys and Scanners: A Guide for UK Engineers and Contractors

When accuracy is critical and existing building documentation is missing or unreliable, there’s one tool that UK engineers, contractors, and architects are increasingly turning to—point cloud surveys. Whether you’re working on a heritage refurbishment in London or a commercial fit-out in Birmingham, point cloud technology offers a fast, precise way to capture real-world site data.

But what exactly is a point cloud survey? How does it work? And when should you consider using one for your project?

In this guide, we’ll explain what point cloud scanners do, how surveys are used in construction, and why they’ve become an essential part of many CAD service workflows.

What Is a Point Cloud Survey?

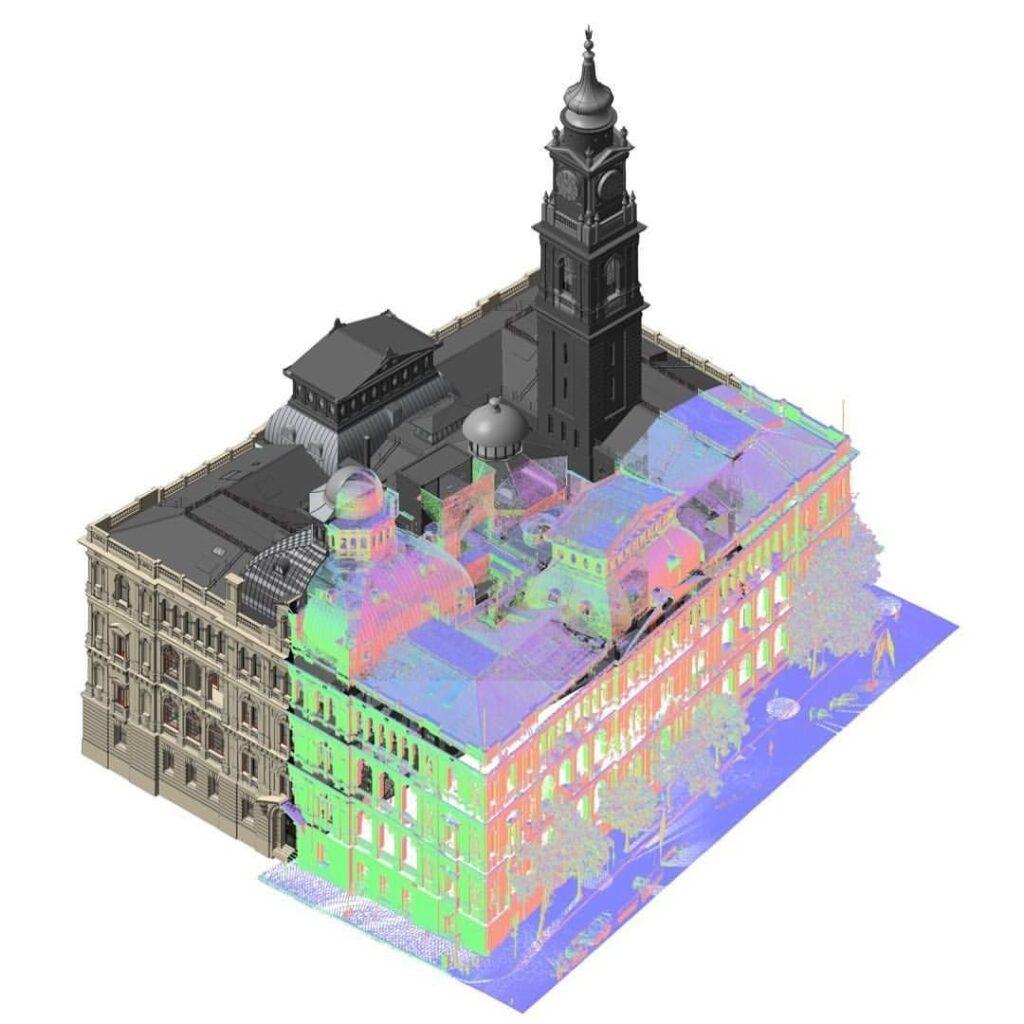

A point cloud survey is a method of 3D site measurement that uses laser scanning to capture spatial data. The result is a ‘cloud’ of millions of individual points—each with its own X, Y, and Z coordinates—representing the exact geometry of a structure, surface, or landscape.

Once captured, this data can be processed into:

• 2D CAD drawings (plans, elevations, sections)
• 3D models (for visualisation or BIM use)
• Measured building surveys

This approach is far faster and more accurate than traditional tape or total station measurements—especially in complex or inaccessible environments.

How Does a Point Cloud Scanner Work?

A point cloud scanner, also known as a 3D laser scanner, emits laser beams that bounce off surfaces in the environment. By calculating the time it takes for the laser to return, the scanner determines the distance to each surface point.

Hundreds of thousands of measurements are taken per second, building a highly detailed spatial map of the entire area. These scans are then combined into a unified dataset—the “point cloud.”

Advanced scanners like those from Leica or FARO can achieve millimetre-level accuracy, making them ideal for everything from architectural surveys to structural analysis.

Common Use Cases in UK Construction

Point cloud surveys are now widely used across the UK construction and design industries, particularly for:

• Heritage refurbishments – Capturing complex details of listed buildings
• Retail or office fit-outs – Recording existing MEP layouts or spatial constraints
• Industrial facilities – Scanning machinery, racking systems, or warehouse layouts
• Infrastructure upgrades – Bridges, tunnels, and rail corridors
• Measured building surveys – Generating accurate plans for planning or renovation

In short, any project that involves existing conditions with poor or outdated drawings can benefit from a point cloud survey.

Point Cloud Survey vs. Traditional Measured Survey

It’s helpful to understand the difference between a point cloud survey and a traditional measured survey:

Aspect	Traditional Measured Survey	Point Cloud Survey
Speed	Slower – manual measurements	Faster – scans large areas in minutes
Accuracy	Depends on equipment and skill	High – up to 2mm precision
Data Richness	Limited – selective measurements	Dense – millions of data points
Output	Sketches, CAD drawings	3D point cloud, CAD-ready models

That’s why more UK contractors and design teams are moving toward point cloud to CAD conversion as their preferred workflow.

Turning Point Cloud Data into CAD Drawings

The scan data itself isn’t very useful unless it’s processed. This is where professional CAD services step in. Using software like ReCap, AutoCAD, or Revit, surveyors and technicians convert the point cloud into clean, readable outputs such as:

• 2D floor plans, elevations, and sections
• 3D mesh models or parametric BIM models
• Clash detection or site analysis visuals

This process requires skilled drafting knowledge—accuracy matters, especially when translating complex geometry from scan data into usable CAD drawings.

When Should You Use a Point Cloud Survey?

You don’t need a point cloud scan on every job, but it’s ideal when:

• You don’t have reliable “as-built” drawings
• The structure is irregular or hard to measure
• You need highly detailed MEP coordination
• Time on site is limited (e.g. occupied or sensitive buildings)
• You’re preparing for prefabrication or modular construction

In many retrofit or commercial upgrade projects, relying on tape measures or old PDFs is simply too risky. Point cloud surveys provide clarity early—before errors get costly.

What About Cloud Point Surveys ?

You might see or hear the term cloud point survey floating around online. It’s just a common mix-up—there’s no such thing as a “cloud point” survey. The correct term is point cloud survey.

But if someone on your team uses the phrase, they’re almost certainly referring to the same 3D laser scanning process described here.

Choosing the Right Survey Partner

Not all point cloud survey providers offer the same level of quality. If you’re looking to outsource, here’s what to check:

• UK experience – Are they familiar with British Standards and planning requirements?
• Scan quality – Do they use high-end scanners (e.g. Leica, FARO)?
• Conversion expertise – Can they turn scans into usable CAD or BIM files?
• Delivery format – Will they provide DWG, PDF, or Revit-ready files?

At Optimar Precon, we combine accurate point cloud scanning with professional CADD drafting, so you get both the data and the drawings—ready to use across your project team.

Final Thoughts

Point cloud surveys aren’t just a high-tech gimmick—they’re a practical tool that solves real problems in construction, especially on retrofit and complex projects. With fast site capture, unmatched accuracy, and detailed deliverables, they help project teams reduce risk, improve coordination, and build with confidence.

Whether you’re an engineer planning a refurbishment, a contractor checking steel alignment, or a designer needing precise interior dimensions, a point cloud survey might be the smartest first step.
